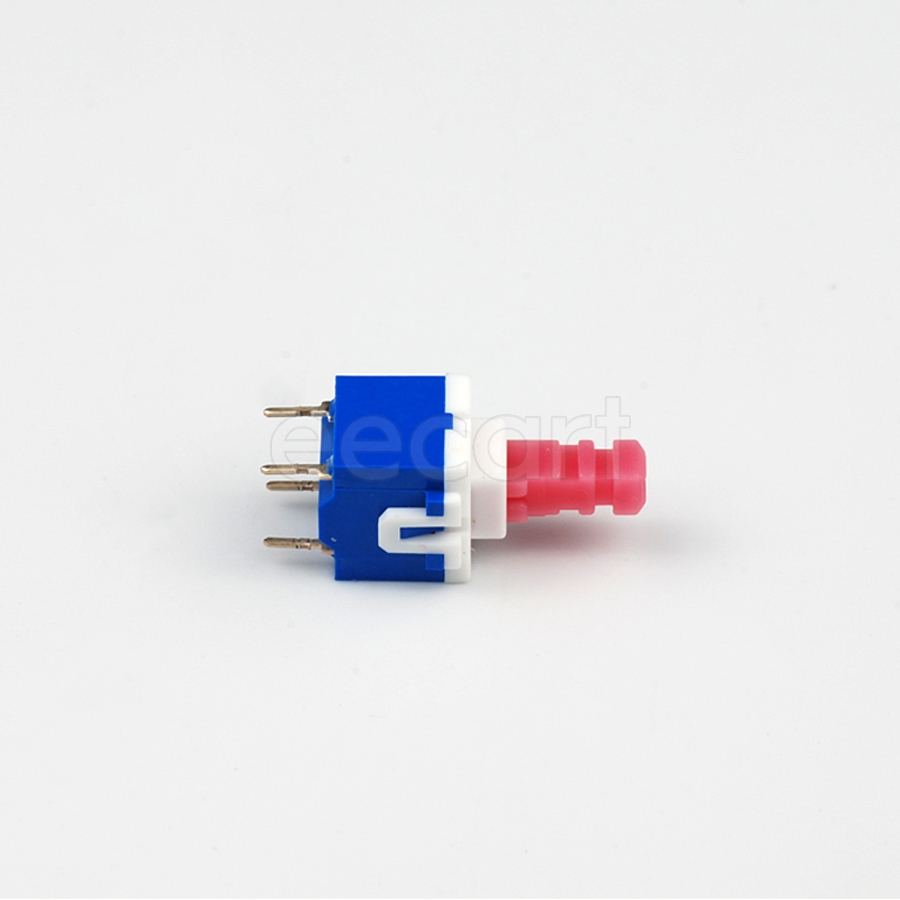

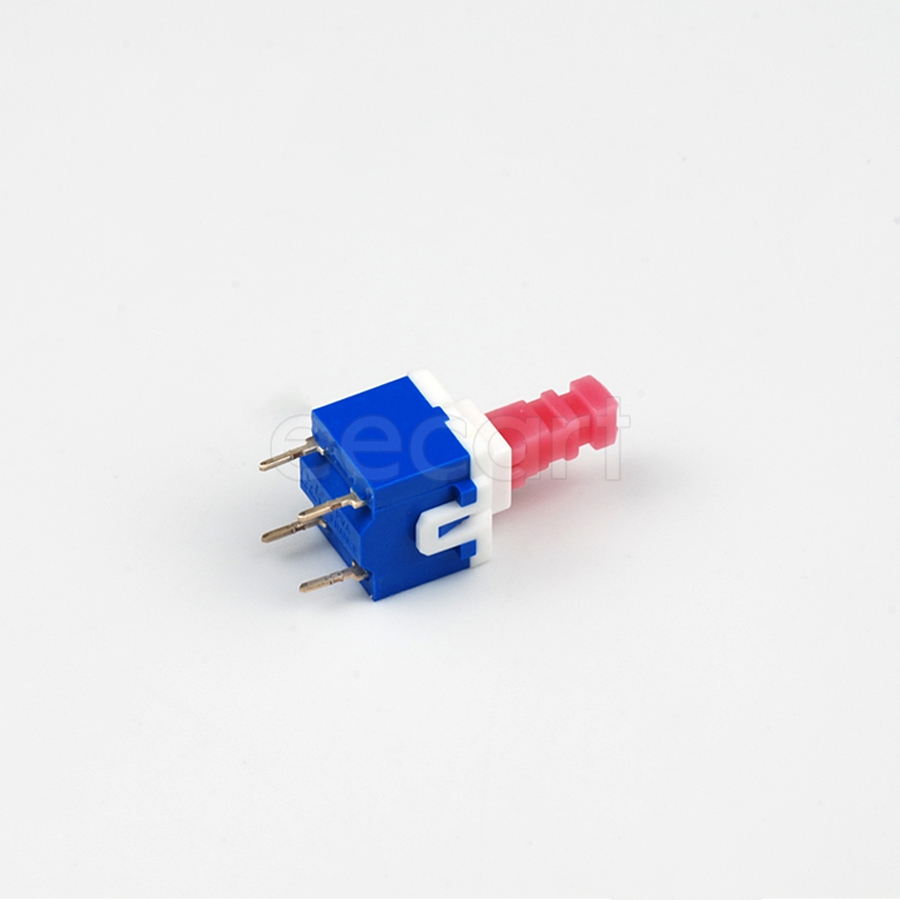

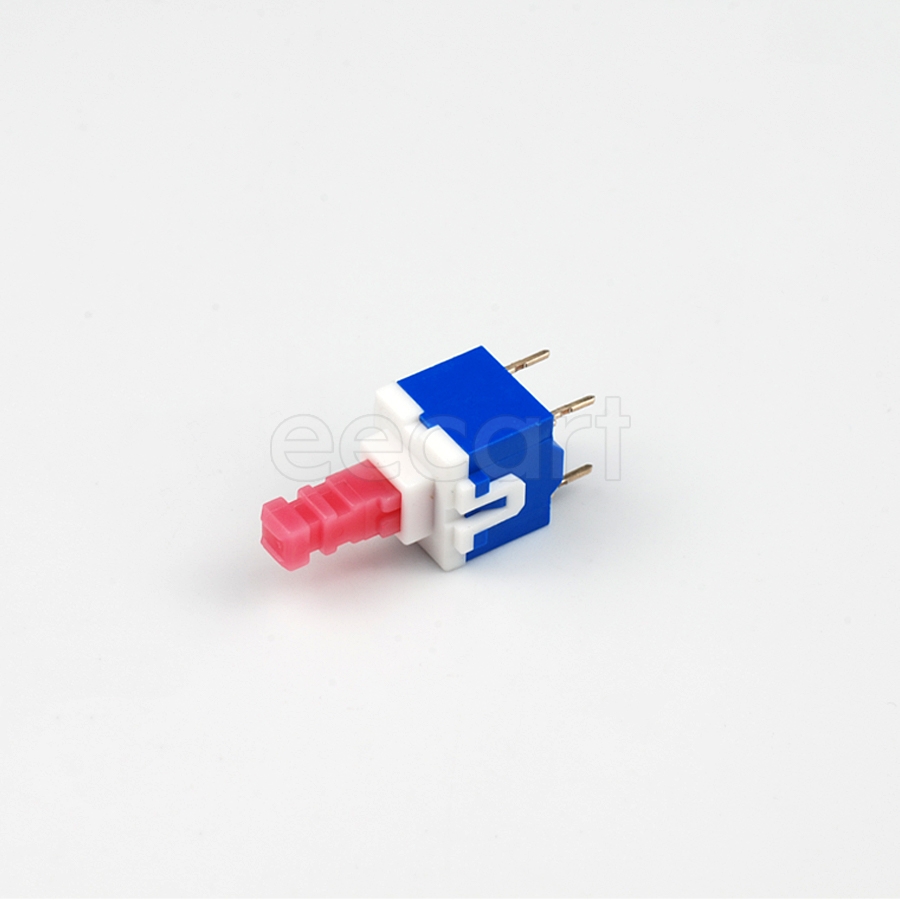

PVA1 EE H3
Manufacturer:
C&K Components
Mfr.Part #:
PVA1 EE H3
Datasheet:
Description:
Pushbutton Switches Through Hole DPST OFF - (ON) Plunger for Cap Illuminated Keyswitch Current Rating:100 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 32 V |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Power Rating | 3 W |
| Circuit Type | DPST |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Type | Keyswitch |
| Number of Terminals | 4 |
| Terminal Pitch | 5 mm |
| Current Rating | 100 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 32 V |
| Orientation | Straight |
| Actuator Length | 9.55 mm |
| Throw Configuration | DPST |
| Row Spacing | 6 mm |
| Switch Function | OFF - (ON) |
| Illumination Type | Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 1.2 N |
| Actuator Type | Plunger for Cap |
| Termination Style | PC Pin |
| Cap Color | White |
